Product features

• ? 7-inch touch screen operation;

• ? The vehicle electronic interference simulator supports multiple languages, which is convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in international standard grade parameters, easy and fast operation;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Model of automobile electronic interference simulator


  P5a


  Pulse voltage us


  Input impedance ri


  Pulse width TD


  Rising edge tr


  Pulse interval T1


  Number of pulses:


  P5b


  In pulse voltage us


  Mid pulse limiting voltage US1


  Input impedance ri


  Midpulse width TD


  Rising edge tr


  Mid pulse interval T1


  Number of pulses n


  EUT power capacity


  Equipment power supply

• RV P5


  12V system /24v system


  40 ~102V/100 ~202V


  0.5Q~8Q


  40ms ~ 400ms


  5ms ~ 10ms


  1min ~ 5min


  1~9999 times


  12V system /24v system


  40~102V/100 ~202V


  20~102V/20~202v


  0.5~8Q


  40ms ~ 400ms


  5ms ~10ms


  1min ~ 5min


  1 ~ 9999 times


  20A


  AC220V±10% 50/60Hz

Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

Impulse current generator sur 20KA

Model：SUR 20KA

The lightning surge generator sur 20KA is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more

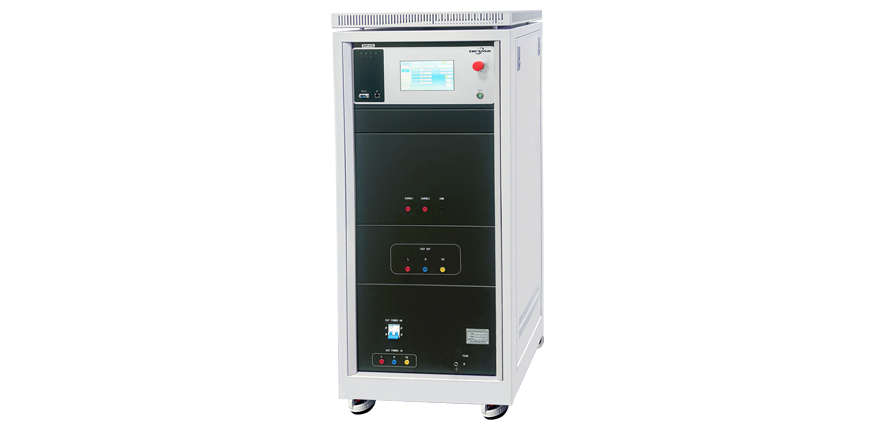

Single phase 10kV multifunctional lightning surge generator sur s10l
