Product features

• ? 7 inch color touch screen;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Built in international standard grade parameters, easy and fast operation;

• ? Built in voltage and current probes, convenient for users to detect the output waveform;

• ? Self calibration function to ensure the normal operation of the equipment;

• ? RS232 interface, optional PC control software operation.

Product parameters

• Product model:


  Surge waveform


  Open circuit voltage


  short-circuit current


  Surge polarity


  Phase angle


  Programmable test program


  Output impedance


  Coupling / decoupling network


  Surge coupling mode


  frequency


  Interval time


  Working power supply


  ambient temperature

• SUR S8


  Voltage wave: 1.2/50 main 20%us current wave: 8/20 main 20%us


  0.2~8kv main 5%


  0.1~4kA±5%


  Positive, negative, positive / negative, negative / positive, alternating positive and negative,


  0~360 ° synchronous or asynchronous make-up 1 °


  Built in IEC standard, user-defined, programming, up to 40 groups


  2q (common mode 12q2)


  Built in, single-phase three wire, 16a, 50hz/60hz


  Differential mode 18uf/2q, common mode 9uf /10q


  1 ~ 9999 times


  10~9999s


  AC220V±10%; 50/60Hz 150W


  Temperature: 15 ℃ ~35 ° ℃; Relative humidity 10%-70%

Product recommendation

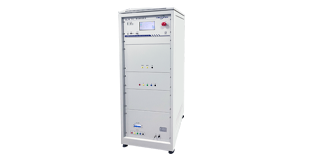

Three phase 10kV lightning surge generator sur T10

Model：SUR T10

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

Three phase 20kV lightning surge generator sur T20

Model：SUR T20

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

Three phase 15kV lightning surge generator sur T15

Model：SUR T15

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more
